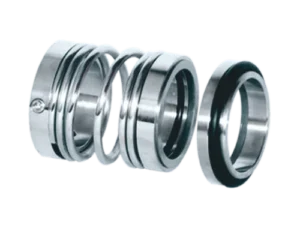

ISPL 2406 Straight Spring Seal
ISPL 2406 is a straight single-spring seal for high pressure, in balanced and unbalanced versions. Its sturdy, long spring tolerates misalignment, vibration, thermal expansion and axial play, so it suits slurries and sewage.
- Type
- Single, balanced or unbalancedBalanced or unbalanced
- Rotation
- LH/RH
- Shaft size
- 25–100 mm0.98–3.94 in
- Pressure
- up to 20 kg/cm²≤ 20 kg/cm²up to 284 psi≤ 284 psi
- Temperature
- up to 150 °C≤ 150 °Cup to 302 °F≤ 302 °F
- Spring
- Straight, single
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 25–1000.98–3.94 mmin | mmin | |
| Pressure | up to 20≤ 20up to 284≤ 284 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 150≤ 150up to 302≤ 302 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Rotation | LH/RH | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | [Face combinations] | |
| 2 · Springs | [Grade] | |
| 3 · Secondary seals | [Elastomer and PTFE options][Elastomer options] | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | [Grades] |
Applications
Where it's used
Industries
Equipment
- Light abrasive and sewage pumps
- Pumps for moderate abrasive slurries
- Lime and syrup pumps
- High-velocity fluid duty
Light abrasive and sewage pumps, pumps for moderate abrasive slurries, lime and syrup pumps and high-velocity fluid duty.
Design
Design features
-
Sturdy, long spring
Tolerates misalignment, vibration and axial play.
-
Drive lugs
No torsional load on the spring.
-
High pressure
Handles high pressure.
-
Slurry duty
Abrasive slurries of moderate concentration.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
