Agitator and mixer seals

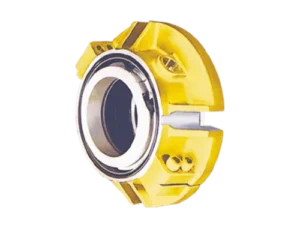

ISPL 2418 Split Seal
ISPL 2418 is a balanced, radially split seal in two parts, quick to install. Compression rings act as the spring, which avoids clogging in fibrous or abrasive service.
- Type
- Split, balanced
- Rotation
- Bi-directional
- Shaft size
- 20–100 mm0.79–3.94 in
- Pressure
- up to 20 kg/cm²≤ 20 kg/cm²up to 284 psi≤ 284 psi
- Temperature
- up to 180 °C≤ 180 °Cup to 356 °F≤ 356 °F
- Fitting
- Two-part, radially splitTwo-part split
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 20–1000.79–3.94 mmin | mmin | |
| Pressure | up to 20≤ 20up to 284≤ 284 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 180≤ 180up to 356≤ 356 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Rotation | Bi-directional | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | [Face combinations] | |
| 2 · Springs | Compression rings act as the springCompression rings | |
| 3 · Secondary seals | [Elastomer and PTFE options][Elastomer options] | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | [Grades] |
Applications
Where it's used
Industries
- Food processing
- Pulp and paper
- Power generation
- Wastewater treatment
- Mining
Equipment
- Agitators and mixers
- Pumps and other rotating equipment
Agitators and mixers and pumps and other rotating equipment.
Design
Design features
-
Radially split
One of the quickest two-part seals to fit.
-
No adapters
Slotted glands fit many machines.
-
No clogging
Compression rings act as the spring.
-
Many sizes
Available in various sizes.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
FAQ
Questions buyers ask
Does it need adapters to fit?
No. Long slots in the gland plate let it fit many pumps and other rotating equipment without adapters.
What do you need from me to quote?
Shaft size, speed, temperature, pressure and the fluid. A photo of the old seal or its nameplate helps.
How long does delivery take?
After order confirmation: 2 days from stock, 2 weeks for a new seal.
