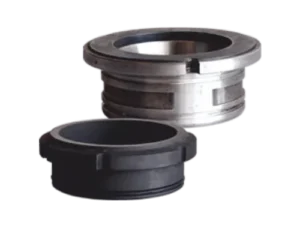

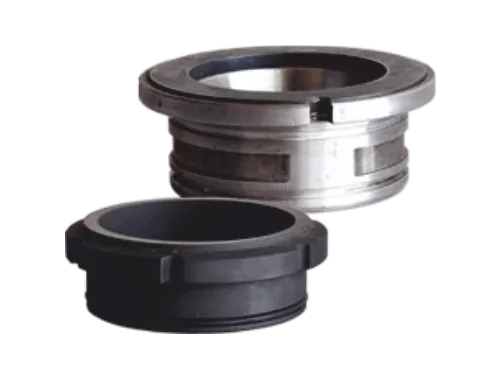

ISPL 2423 Heat Exchanger Seal
ISPL 2423 is a single-acting, unbalanced seal for the heat exchangers of mango and banana pulp plants. It comes in sizes up to 100 mm, for temperatures up to 150 °C.
- Type
- Single, unbalanced
- Rotation
- Bi-directional
- Shaft size
- 25–100 mm0.98–3.94 in
- Pressure
- up to 10 kg/cm²≤ 10 kg/cm²up to 142 psi≤ 142 psi
- Temperature
- up to 150 °C≤ 150 °Cup to 302 °F≤ 302 °F
- Duty
- Heat exchangers
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 25–1000.98–3.94 mmin | mmin | |
| Pressure | up to 10≤ 10up to 142≤ 142 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 150≤ 150up to 302≤ 302 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Rotation | Bi-directional | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | [Face combinations] | |
| 2 · Springs | [Grade] | |
| 3 · Secondary seals | [Elastomer and PTFE options][Elastomer options] | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | [Grades] |
Applications
Where it's used
Industries
- Chemical plants
- Food processing
- Fruit pulp
Equipment
- Heat exchangers in mango and banana pulp plants
- Water service
Heat exchangers in mango and banana pulp plants and water service.
Design
Design features
-
Heat exchanger duty
Made for fruit pulp heat exchangers.
-
Up to 100 mm
Sizes up to 100 mm.
-
Up to 150 °C
Temperatures up to 150 °C.
-
Either direction
Independent of the direction of rotation.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
FAQ
Questions buyers ask
What sizes are available?
Shaft sizes up to 100 mm, for temperatures up to 150 °C.
What do you need from me to quote?
Shaft size, speed, temperature, pressure and the fluid. A photo of the old seal or its nameplate helps.
How long does delivery take?
After order confirmation: 2 days from stock, 2 weeks for a new seal.
