Pump seals

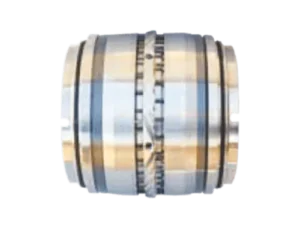

ISPL 2424 Pressure Screen Double Seal
ISPL 2424 is a multi-spring double seal in a back-to-back arrangement. It is made for pressure screens and Gyroclean light-reject rotary cleaners in pulp and paper mills.
- Type
- Double, multi-spring
- Rotation
- Bi-directional
- Shaft size
- 25–200 mm0.98–7.87 in
- Pressure
- up to 10 kg/cm²≤ 10 kg/cm²up to 142 psi≤ 142 psi
- Temperature
- up to 150 °C≤ 150 °Cup to 302 °F≤ 302 °F
- Duty
- Pressure screens
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 25–2000.98–7.87 mmin | mmin | |
| Pressure | up to 10≤ 10up to 142≤ 142 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 150≤ 150up to 302≤ 302 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Rotation | Bi-directional | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | [Face combinations] | |
| 2 · Springs | [Grade] | |
| 3 · Secondary seals | [Elastomer and PTFE options][Elastomer options] | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | [Grades] |
Applications
Where it's used
Industries
Equipment
- Pressure screens
- Gyroclean light-reject rotary cleaners
Pressure screens and gyroclean light-reject rotary cleaners.
Design
Design features
-
Double seal
Two seals, back-to-back.
-
Multi-spring
Multiple springs on each seal.
-
Paper mill duty
Pressure screens and rotary cleaners.
-
Either direction
Independent of the direction of rotation.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
FAQ
Questions buyers ask
Which equipment is it made for?
Pressure screens and Gyroclean light-reject rotary cleaners in pulp and paper mills.
What do you need from me to quote?
Shaft size, speed, temperature, pressure and the fluid. A photo of the old seal or its nameplate helps.
How long does delivery take?
After order confirmation: 2 days from stock, 2 weeks for a new seal.
