Agitator and mixer seals

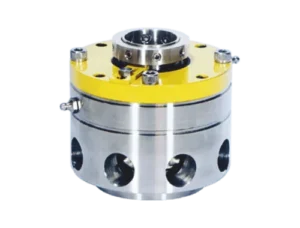

ISPL 24556 Single Seal with Bearing
ISPL 24556 is a single agitator seal with a built-in bearing, for side, top or bottom drives. A cooling jacket version handles high temperature.
- Type
- Single, with bearing
- Rotation
- Bi-directional
- Shaft size
- 25–300 mm0.98–11.81 in
- Pressure
- up to 50 kg/cm²≤ 50 kg/cm²up to 711 psi≤ 711 psi
- Temperature
- up to 200 °C≤ 200 °Cup to 392 °F≤ 392 °F
- Drive
- Side, top or bottom
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 25–3000.98–11.81 mmin | mmin | |
| Pressure | up to 50≤ 50up to 711≤ 711 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 200≤ 200up to 392≤ 392 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Rotation | Bi-directional | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | [Face combinations] | |
| 2 · Springs | [Grade] | |
| 3 · Secondary seals | [Elastomer and PTFE options][Elastomer options] | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | [Grades] |
Applications
Where it's used
Equipment
- Agitators and reactors with side, top or bottom drives
Agitators and reactors with side, top or bottom drives.
Design
Design features
-
Built-in bearing
The seal carries its own bearing.
-
Any drive
Side, top or bottom drive.
-
Cooling jacket
For high temperature.
-
Either direction
Independent of the direction of rotation.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
FAQ
Questions buyers ask
Which drive positions does it suit?
Side, top and bottom drives.
What do you need from me to quote?
Shaft size, speed, temperature, pressure and the fluid. A photo of the old seal or its nameplate helps.
How long does delivery take?
After order confirmation: 2 days from stock, 2 weeks for a new seal.
