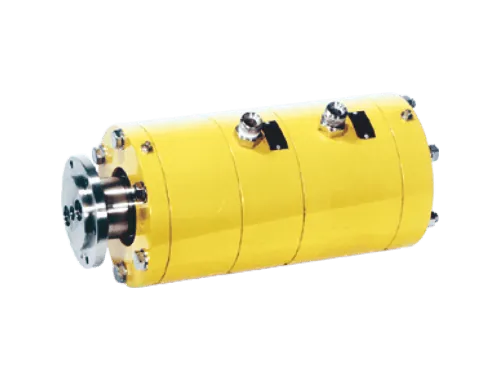

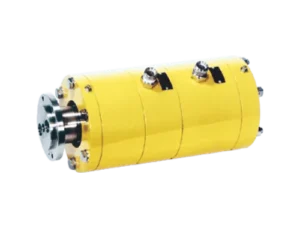

ISPL 24560 Quadruple Sealing System
ISPL 24560 is a cartridge with twin double multi-spring seals and a bearing at each end, made for wire drawing machines. Cooling water circulates in the seal chamber.
- Type
- Twin double cartridgeTwin double
- Rotation
- Bi-directional
- Shaft size
- 25–200 mm0.98–7.87 in
- Pressure
- up to 20 kg/cm²≤ 20 kg/cm²up to 284 psi≤ 284 psi
- Temperature
- up to 150 °C≤ 150 °Cup to 302 °F≤ 302 °F
- Bearings
- One at each end
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 25–2000.98–7.87 mmin | mmin | |
| Pressure | up to 20≤ 20up to 284≤ 284 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 150≤ 150up to 302≤ 302 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Rotation | Bi-directional | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | [Face combinations] | |
| 2 · Springs | [Grade] | |
| 3 · Secondary seals | [Elastomer and PTFE options][Elastomer options] | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | [Grades] |
Applications
Where it's used
Industries
- Wire drawing
Equipment
- Wire drawing machines
Wire drawing machines.
Design
Design features
-
Twin double seals
Four seals with multiple springs.
-
Double bearing
A bearing at each end.
-
Water cooled
Cooling water in the seal chamber.
-
Cartridge
Fitted as one assembly.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
FAQ
Questions buyers ask
What is it made for?
Wire drawing machines.
What do you need from me to quote?
Shaft size, speed, temperature, pressure and the fluid. A photo of the old seal or its nameplate helps.
How long does delivery take?
After order confirmation: 2 days from stock, 2 weeks for a new seal.
