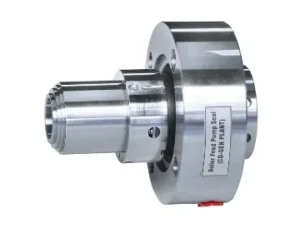

ISPL 2402 Multi-Spring Balanced Seal
ISPL 2402 is a balanced, double-acting seal with multiple springs, mounted inside. The springs load the face evenly and the balanced primary ring suits high-pressure chemical and acid pumps.
- Type
- Single, balanced
- Rotation
- Bi-directional
- Shaft size
- 25–200 mm0.98–7.87 in
- Pressure
- up to 20 kg/cm²≤ 20 kg/cm²up to 284 psi≤ 284 psi
- Temperature
- up to 150 °C≤ 150 °Cup to 302 °F≤ 302 °F
- Spring
- Multi-spring
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 25–2000.98–7.87 mmin | mmin | |
| Pressure | up to 20≤ 20up to 284≤ 284 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 150≤ 150up to 302≤ 302 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Rotation | Bi-directional | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | [Face combinations] | |
| 2 · Springs | [Grade] | |
| 3 · Secondary seals | PTFE, GFT, Viton, Kalrez, nylon or Grafoil wedgePTFE, Viton, Kalrez and more | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | [Grades] |
Applications
Where it's used
Industries
Equipment
- Chemical pumps
- Acid pumps
- Corrosive chemical pumps
- High-pressure pumps
Chemical pumps, acid pumps, corrosive chemical pumps and high-pressure pumps.
Design
Design features
-
Uniform face loading
Multiple springs press evenly on the face.
-
Balanced
The balanced primary ring suits high pressure.
-
Double acting
A double-acting design, mounted inside.
-
Wedge options
PTFE, GFT, Viton, Kalrez, nylon or Grafoil wedges.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
