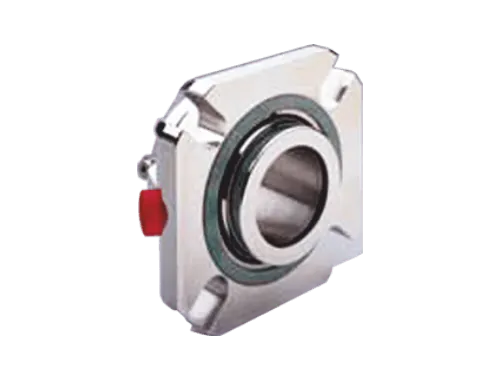

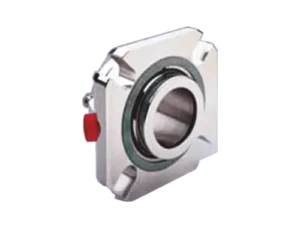

ISPL 2413 Multi-Spring Cartridge Seal
ISPL 2413 is a single seal in a cartridge assembly, with solid faces and springs protected from the medium. Large clearances and a wide face drive suit high pressure, high temperature, stop-start duty and viscous fluids.
- Type
- Single cartridge
- Rotation
- Bi-directional
- Shaft size
- 20–200 mm0.79–7.87 in
- Pressure
- up to 15 kg/cm²≤ 15 kg/cm²up to 213 psi≤ 213 psi
- Temperature
- up to 150 °C≤ 150 °Cup to 302 °F≤ 302 °F
- Spring
- Multi-spring, protected
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 20–2000.79–7.87 mmin | mmin | |
| Pressure | up to 15≤ 15up to 213≤ 213 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 150≤ 150up to 302≤ 302 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Rotation | Bi-directional | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | [Face combinations] | |
| 2 · Springs | [Grade] | |
| 3 · Secondary seals | [Elastomer and PTFE options][Elastomer options] | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | [Grades] |
Applications
Where it's used
Industries
Equipment
- Process pumps
Process pumps.

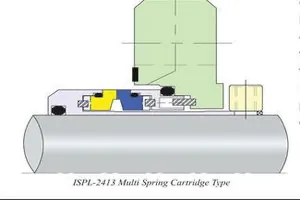

Design
Design features
-
Cartridge assembly
Easy to install as one unit.
-
Protected springs
Springs are kept out of the medium.
-
Solid faces
Stable faces for longer seal life.
-
Stop-start duty
A large face drive protects the faces.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
FAQ
Questions buyers ask
Are the springs in contact with the product?
No. The springs are protected from the medium.
What do you need from me to quote?
Shaft size, speed, temperature, pressure and the fluid. A photo of the old seal or its nameplate helps.
How long does delivery take?
After order confirmation: 2 days from stock, 2 weeks for a new seal.
