ISPL 2416 [Name to confirm]

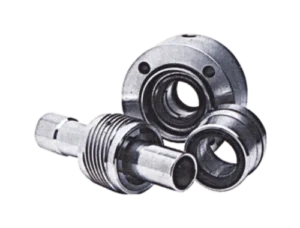

ISPL 2416 is a complete seal with sleeve and gland plate, in single-spring and multi-spring types. It handles slurries, sewage and viscous or abrasive liquids. [Description to confirm by engineering]
- Type
- Single cartridge
- Rotation
- Bi-directional
- Shaft size
- 20–200 mm0.79–7.87 in
- Pressure
- up to 15 kg/cm²≤ 15 kg/cm²up to 213 psi≤ 213 psi
- Temperature
- up to 150 °C≤ 150 °Cup to 302 °F≤ 302 °F
- Fits
- ANSI and DIN equipmentANSI, DIN
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 20–2000.79–7.87 mmin | mmin | |
| Pressure | up to 15≤ 15up to 213≤ 213 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 150≤ 150up to 302≤ 302 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Rotation | Bi-directional | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | SiC, TC, ceramic or carbon | |
| 2 · Springs | [Grade] | |
| 3 · Secondary seals | [Elastomer and PTFE options][Elastomer options] | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | [Grades] |
Applications
Where it's used
Equipment
- Pumps for petroleum products, chemicals, solvents, pulp and paper
- Mixers and agitators
Pumps for petroleum products, chemicals, solvents, pulp and paper and mixers and agitators.
Design
Design features
-
Complete unit
Seal, sleeve and gland plate in one.
-
Fast to fit
Fast and easy installation.
-
ANSI and DIN
Fits ANSI and DIN specification equipment.
-
Key drive
Hard faces and a key drive for high pressure.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
FAQ
Questions buyers ask
Will it fit my pump?
It fits ANSI and DIN standard equipment. Send the pump make and model and we will confirm.
What do you need from me to quote?
Shaft size, speed, temperature, pressure and the fluid. A photo of the old seal or its nameplate helps.
How long does delivery take?
After order confirmation: 2 days from stock, 2 weeks for a new seal.
