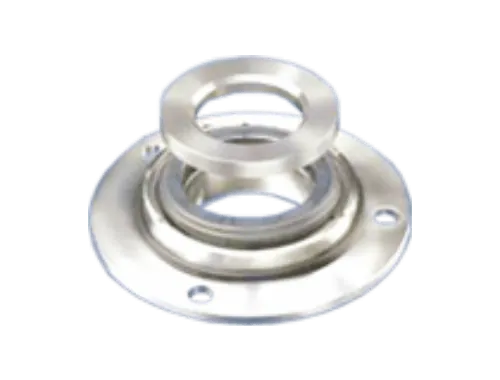

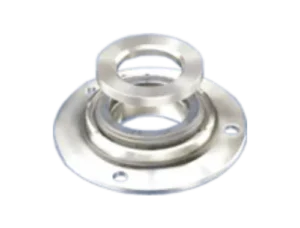

ISPL 2420 Accurate Seal

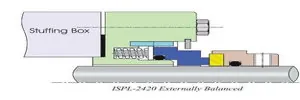

ISPL 2420 is a multi-spring single seal, mounted outside, with a spring-loaded stationary assembly and the springs kept out of the product. It runs at high speed, up to 6,000 rpm, and also on gas.
- Type
- Single, multi-spring
- Rotation
- LH/RH
- Shaft size
- 25–100 mm0.98–3.94 in
- Pressure
- up to 7 kg/cm²≤ 7 kg/cm²up to 100 psi≤ 100 psi
- Temperature
- up to 100 °C≤ 100 °Cup to 212 °F≤ 212 °F
- Speed
- ≤ 6,000 rpm
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 25–1000.98–3.94 mmin | mmin | |
| Pressure | up to 7≤ 7up to 100≤ 100 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 100≤ 100up to 212≤ 212 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Shaft speed | ≤ 6,000 rpm | – | |
| Rotation | LH/RH | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | [Face combinations] | |
| 2 · Springs | [Grade] | |
| 3 · Secondary seals | [Elastomer and PTFE options][Elastomer options] | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | [Grades] |
Applications
Where it's used
Equipment
- High-speed equipment
- Water brake dynamometers
- Gas duty
High-speed equipment, water brake dynamometers and gas duty.
Design
Design features
-
High speed
Runs up to 6,000 rpm.
-
Stationary springs
A spring-loaded stationary assembly.
-
Protected springs
Springs are kept out of the product.
-
Gas duty
Also used on gas.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
FAQ
Questions buyers ask
How fast can it run?
Up to 6,000 rpm.
What do you need from me to quote?
Shaft size, speed, temperature, pressure and the fluid. A photo of the old seal or its nameplate helps.
How long does delivery take?
After order confirmation: 2 days from stock, 2 weeks for a new seal.
