Pump seals

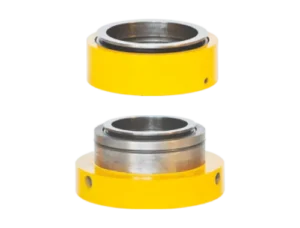

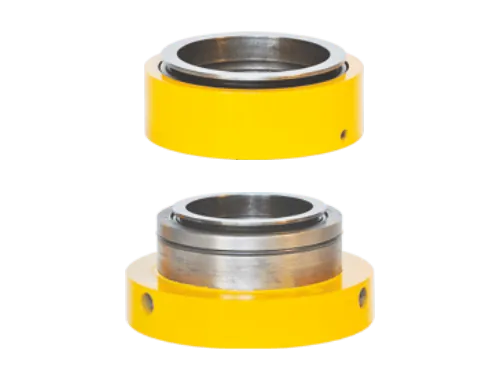

ISPL 2421 Springless Seal
ISPL 2421 is a simple, low-cost single seal with no springs, made for massecuite and other highly viscous liquids. It centres itself to take up shaft eccentricity and needs lubrication in every case.
- Type
- Single, springless
- Rotation
- Bi-directional
- Shaft size
- 40–350 mm1.57–13.78 in
- Pressure
- up to 20 kg/cm²≤ 20 kg/cm²up to 284 psi≤ 284 psi
- Temperature
- up to 100 °C≤ 100 °Cup to 212 °F≤ 212 °F
- Lubrication
- Needed in all casesAlways needed
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 40–3501.57–13.78 mmin | mmin | |
| Pressure | up to 20≤ 20up to 284≤ 284 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 100≤ 100up to 212≤ 212 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Rotation | Bi-directional | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | [Face combinations] | |
| 2 · Springs | None: springless design | |
| 3 · Secondary seals | [Elastomer and PTFE options][Elastomer options] | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | [Grades] |
Applications
Where it's used
Industries
Equipment
- Massecuite pumps
- Pumps for highly viscous liquids
Massecuite pumps and pumps for highly viscous liquids.
Design
Design features
-
No springs
Nothing to clog in viscous liquid.
-
Self-centring
Takes up shaft eccentricity and misalignment.
-
Low cost
A simple, reliable design.
-
Long life
A long service life.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
FAQ
Questions buyers ask
Does it need lubrication?
Yes, always. Lubrication cuts friction between the faces and cools the shaft and seal housing.
What do you need from me to quote?
Shaft size, speed, temperature, pressure and the fluid. A photo of the old seal or its nameplate helps.
How long does delivery take?
After order confirmation: 2 days from stock, 2 weeks for a new seal.
