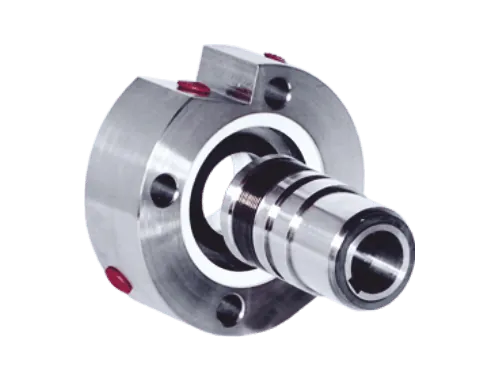

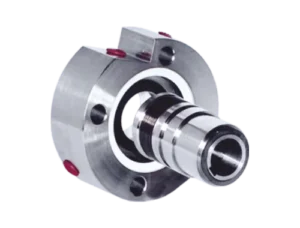

ISPL 2415 Welded Metal Bellows Seal
ISPL 2415 uses welded metal bellows in place of springs and O-rings, so nothing grooves or frets the shaft. It is inherently pressure-balanced and most often used on thermic fluid.
- Type
- Single, balanced or unbalancedBalanced or unbalanced
- Rotation
- Bi-directional
- Shaft size
- 25–100 mm0.98–3.94 in
- Pressure
- up to 20 kg/cm²≤ 20 kg/cm²up to 284 psi≤ 284 psi
- Temperature
- up to 180 °C≤ 180 °Cup to 356 °F≤ 356 °F
- Bellows
- Welded metal
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 25–1000.98–3.94 mmin | mmin | |
| Pressure | up to 20≤ 20up to 284≤ 284 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 180≤ 180up to 356≤ 356 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Rotation | Bi-directional | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | [Face combinations] | |
| 2 · Springs | Welded metal bellows in place of springsMetal bellows | |
| 3 · Secondary seals | [Elastomer and PTFE options][Elastomer options] | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | [Grades] |
Applications
Where it's used
Industries
- Thermic fluid systems
Equipment
- High-temperature pumps
- Thermic fluid pumps
High-temperature pumps and thermic fluid pumps.
Design
Design features
-
Metal bellows
Even loading, self-cleaning, no clogging.
-
No dynamic O-rings
Nothing to groove or fret the shaft.
-
Pressure balanced
Inherently pressure-balanced.
-
High temperature
Most often used on thermic fluid.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
