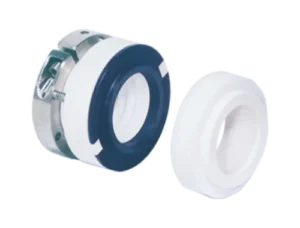

ISPL 2405 PTFE Bellows Seal, Multi-Spring
ISPL 2405 is a balanced, single-acting PTFE bellows seal with a replaceable seal ring, mounted outside. It handles concentrated acids, salts, active organic compounds and corrosive or abrasive liquids.
- Type
- Single, balanced
- Rotation
- Bi-directional
- Shaft size
- 25–100 mm0.98–3.94 in
- Pressure
- up to 7 kg/cm²≤ 7 kg/cm²up to 100 psi≤ 100 psi
- Temperature
- up to 150 °C≤ 150 °Cup to 302 °F≤ 302 °F
- Bellows
- PTFE, multi-spring
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 25–1000.98–3.94 mmin | mmin | |
| Pressure | up to 7≤ 7up to 100≤ 100 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 150≤ 150up to 302≤ 302 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Rotation | Bi-directional | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | [Face combinations] | |
| 2 · Springs | [Grade] | |
| 3 · Secondary seals | PTFE bellows | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | [Grades] |
Applications
Where it's used
Industries
Equipment
- Pumps for concentrated acids and salts
- Pumps for corrosive and abrasive liquids
Pumps for concentrated acids and salts and pumps for corrosive and abrasive liquids.
Design
Design features
-

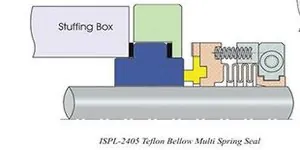

PTFE bellows
PTFE bellows with a replaceable seal ring.
-
Outside mounted
A single-acting seal, mounted outside.
-
Balanced
A balanced design.
-
Either direction
Independent of the direction of rotation.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
FAQ
Questions buyers ask
Can the seal ring be replaced?
Yes. The PTFE bellows carries a replaceable seal ring.
What do you need from me to quote?
Shaft size, speed, temperature, pressure and the fluid. A photo of the old seal or its nameplate helps.
How long does delivery take?
After order confirmation: 2 days from stock, 2 weeks for a new seal.
