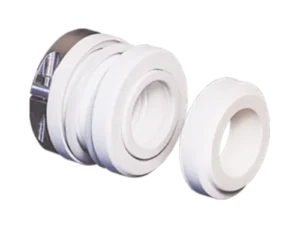

ISPL 2404 PTFE Bellows Seal, Single Spring
ISPL 2404 is a balanced seal with flexible virgin PTFE bellows, mounted outside so only PTFE and ceramic touch the liquid. It suits low-pressure, extremely corrosive service such as acids, solvents, salts and alkalis.
- Type
- Single, balanced
- Rotation
- Bi-directional
- Shaft size
- 25–100 mm0.98–3.94 in
- Pressure
- up to 7 kg/cm²≤ 7 kg/cm²up to 100 psi≤ 100 psi
- Temperature
- up to 150 °C≤ 150 °Cup to 302 °F≤ 302 °F
- Bellows
- Virgin PTFE
Datasheet
Specifications
| Parameter | Limit | Unit | Copy |
|---|---|---|---|
| Shaft diameter | 25–1000.98–3.94 mmin | mmin | |
| Pressure | up to 7≤ 7up to 100≤ 100 kg/cm²psi | kg/cm²psi | |
| Temperature | up to 150≤ 150up to 302≤ 302 °C°F | °C°F | |
| Surface speed | up to [0.0]≤ [0.0] m/sft/s | m/sft/s | |
| Rotation | Bi-directional | – |
| Part | Options | Copy |
|---|---|---|
| 1 · Seal faces | [Face combinations] | |
| 2 · Springs | [Grade] | |
| 3 · Secondary seals | Virgin PTFE bellows | |
| 4 · Gland plate | [Grade] | |
| 5 · Sleeve and other metal partsSleeve, metal parts | Alloy 20, Hastelloy B and C, SS316Alloy 20, Hastelloy, SS316 |
Applications
Where it's used
Industries
- Chemical plants
- Oil and gas
- Concentrated acid manufacture
Equipment
- Pumps for oxidising and reducing agents, solvents, salts and alkalis
- Acid pumps
Pumps for oxidising and reducing agents, solvents, salts and alkalis and acid pumps.
Design
Design features
-
PTFE bellows
Prevents hang-up and takes up shaft run-out.
-
Metal kept dry
Mounted outside: only PTFE and ceramic are wetted.Only PTFE and ceramic are wetted.
-
Corrosive service
Acids, solvents, salts and alkalis.
-
Either direction
Independent of the direction of rotation.
Files
Downloads
Datasheets open without a form. Drawings are sent on request.
FAQ
Questions buyers ask
Why is it mounted outside?
So the metal parts stay out of the corrosive liquid. Only the PTFE and ceramic parts are wetted.
What do you need from me to quote?
Shaft size, speed, temperature, pressure and the fluid. A photo of the old seal or its nameplate helps.
How long does delivery take?
After order confirmation: 2 days from stock, 2 weeks for a new seal.
